Ameteur Radio Astronomy and Satellite Ground Station.

The construction of Ground Station started in 2019 and it belongs to University of Turkish Aeronautical Association Astronomy Community. The information on this page is just technical summary of the station.

Go to the station! Formal web page

Station Computer

A Debian 9.11 Stretch laptop used. Installation steps are in here.

Antennas

UHF-VHF arrow antenna for 145.850 Mhz (6.46 dBd gain) and 436.800 Mhz (10.5 dBd gain).
Yagi H-line radio astronomy antenna for 1.42 Ghz (18 dB gain).
A new S-band antenna will be added in the future.

Mobile Antennas

Tape measure VHF antenna for 145 Mhz (7.3 dBd gain). Perfect with ISS and NOAA.
Turnstile antenna for 137 Mhz.

Controller

Quartapound's CNC shield based rotator controller used with an arduino uno.

SDR and LNA

Useful Programs

SDR# (Win), Gqrx (Lin).
Gpredict, Orbitron.

Suggested People to Follow

Cees Bassa / Alexandru Csete / Scott Tilley / Edgar Kaiser
Dr. Marco Langbroek / Corey Shields / Mike Rupprecht

Observation Examples

!!!-Following data has been received by the station.-!!!

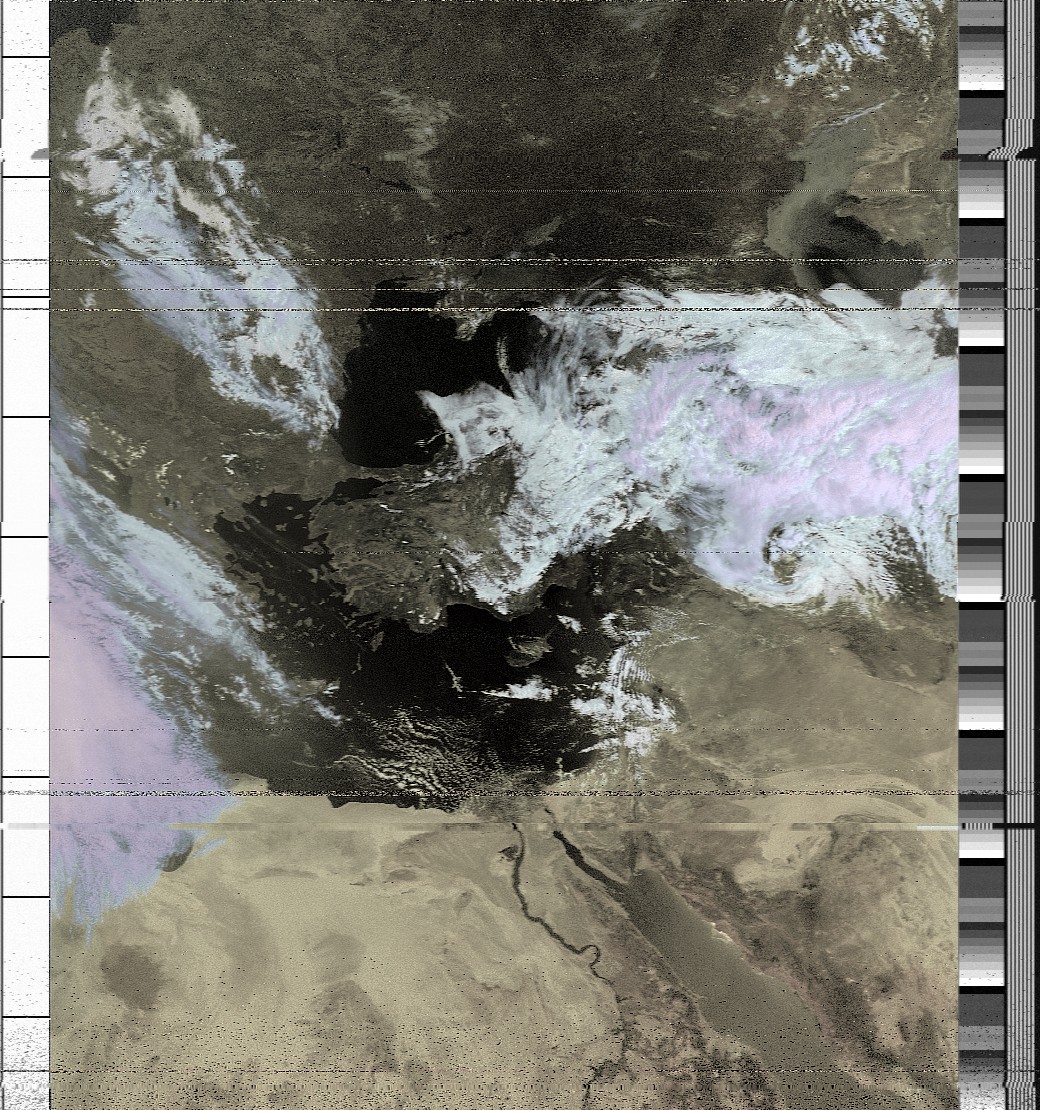

NOAA-18 wav and picture.
ISS-Nick Hague

Detailed Information

Contact with asthku community via e-mail or instagram.
Send me an e-mail.
