Homework 2

Hand in your homeworks both in hard copy form and on 3.5" disk with the label of your name and number.

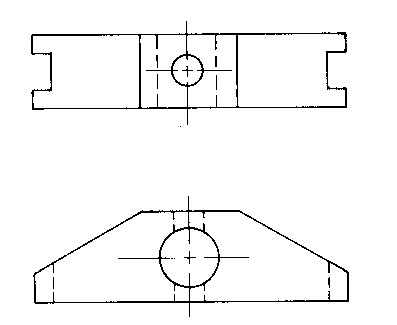

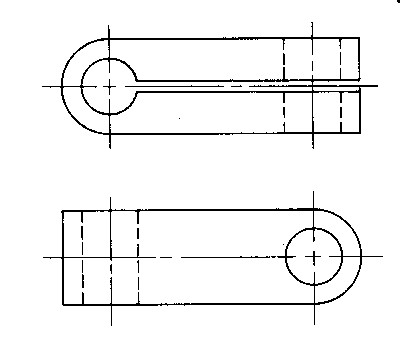

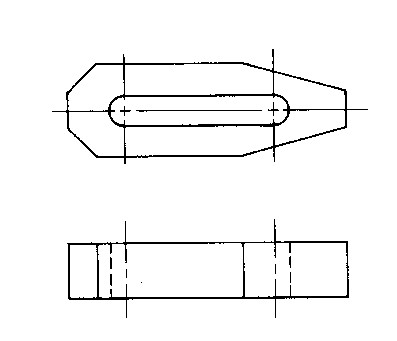

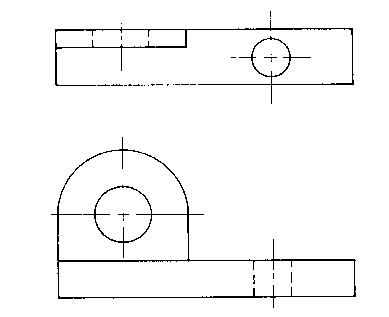

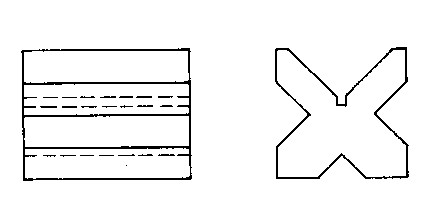

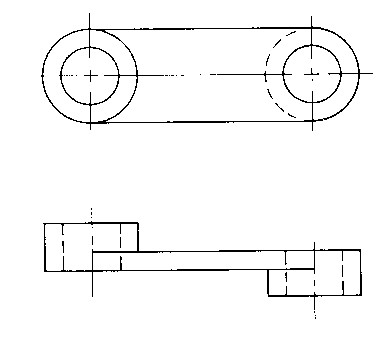

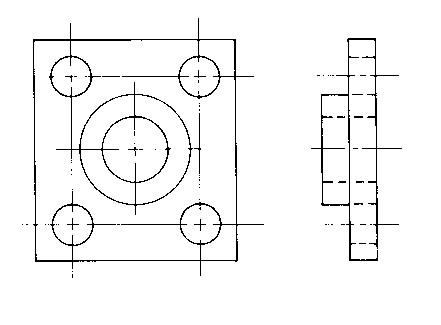

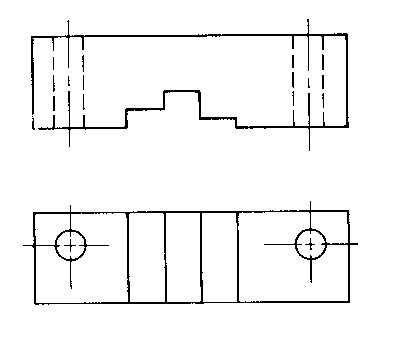

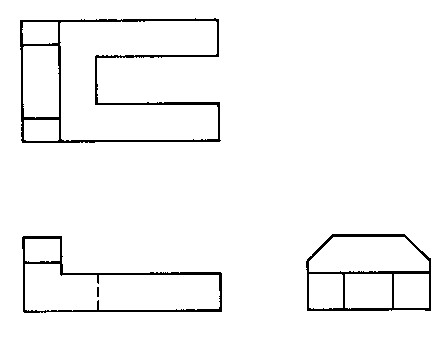

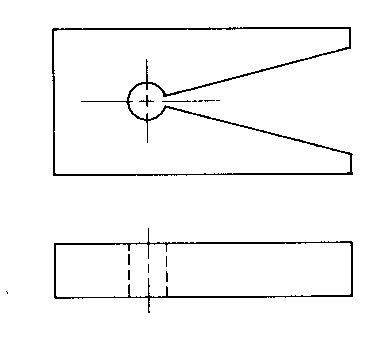

Redraw the part (one of them sectional view)   and add dimensions.  Select a scale and  show  it  in the title block.

Note: Dimensions should be taken from the drawing given  by using a ruler.

Due on wednesday, March 20.
