Homework 1
Hand in your homeworks both in hard copy form and on 3.5" disk with the label of your name and number.
Due on Wednesday February 27

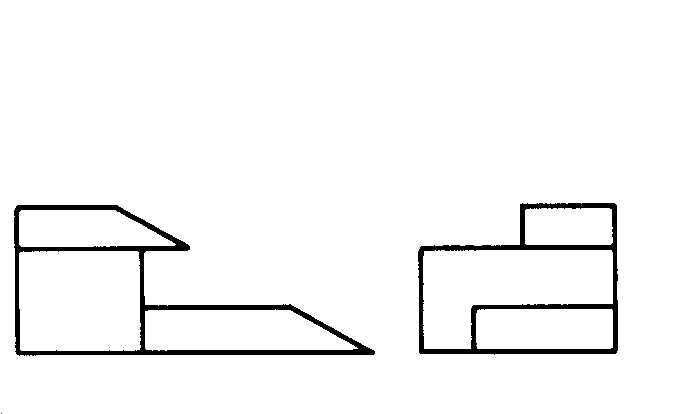

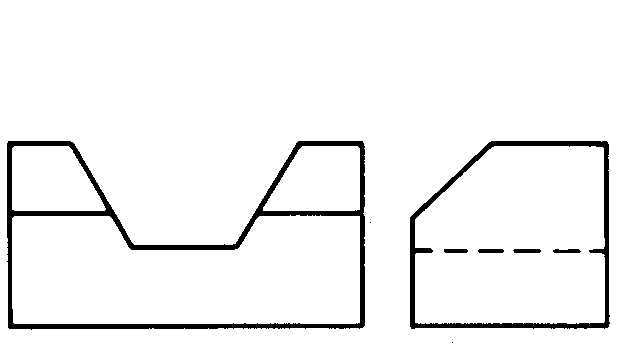

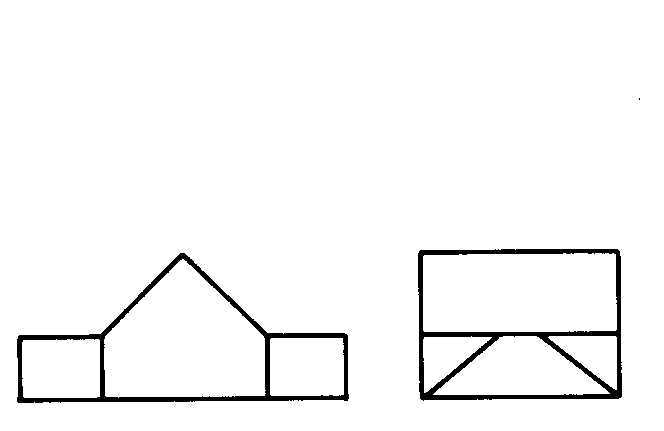

The front and side views below are complete. Draw the top views.
|
030000008 |
| 030000010 |
| 030000011 |
| 030000013 |
| 030000024 |
The front and side views below are complete. Draw the top views.
| 030000029 |
| 030000037 |
| 030000040 |
| 030000045 |
| 030000051 |

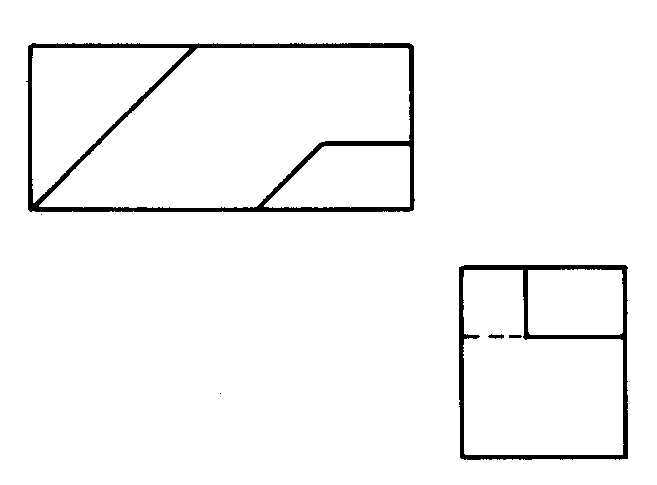

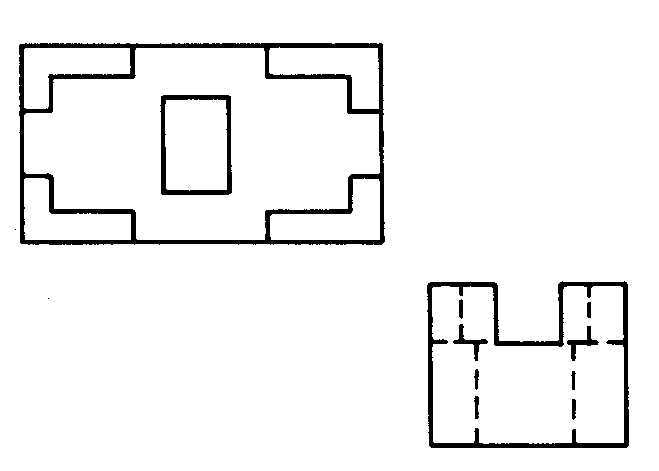

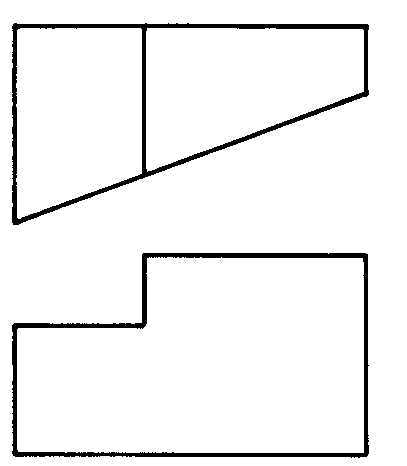

The front and top views of the objects below are complete. Draw the side views.
| 030000059 |
| 030000069 |
| 030000108 |
| 030000113 |

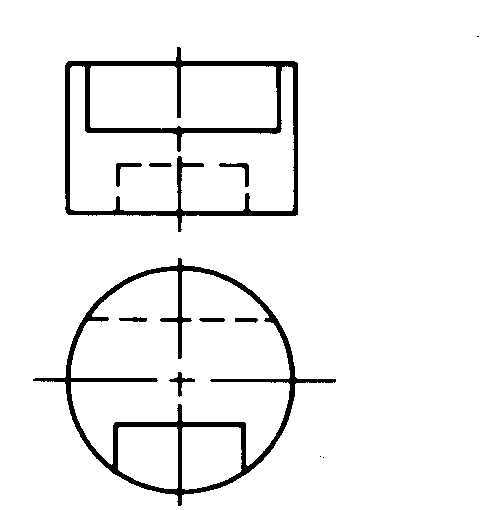

The front and top views of the objects below are complete. Draw the side views.
| 030000119 |
| 030000120 |
| 030000142 |
| 030000159 |
| 030010007 |
The front and top views of the objects below are complete. Draw the side views.
| 030010017 |
| 030010020 |
| 030010021 |
| 030010026 |

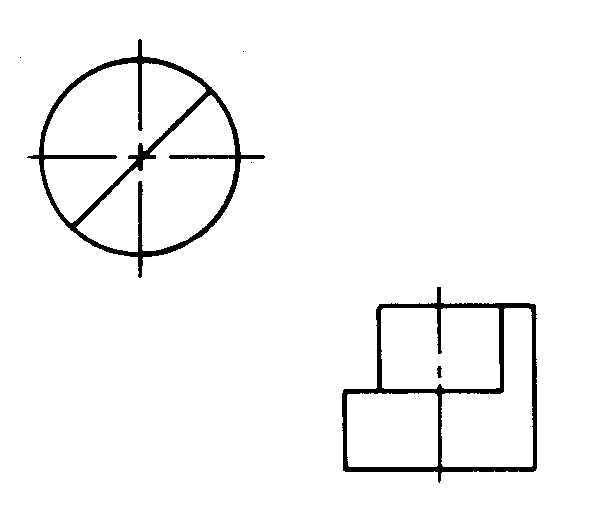

The side and top views of the objects below are complete. Draw the front views.
| 030010027 |
| 030010031 |
| 030010075 |
| 030010078 |
| 030010080 |

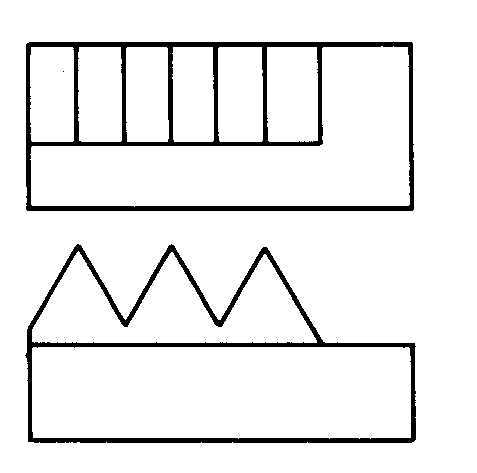

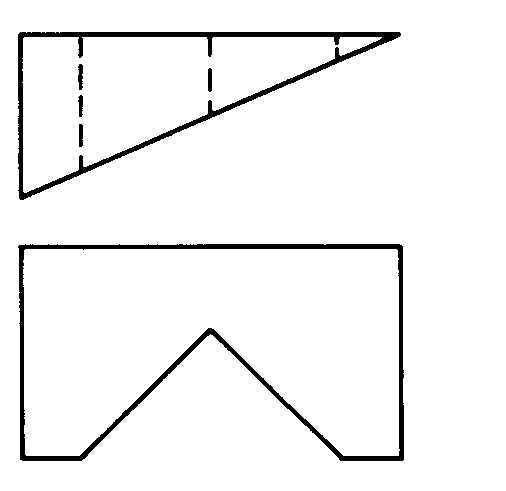

One of the views of the objects below is missing. Draw the missing views.
| 030010092 |
| 030010099 |
| 030010101 |
| 030010105 |
| 030010115 |
One of the views of the objects below is missing. Draw the missing views
| 030010136 |
| 030010138 |
| 030010141 |
| 030010142 |
One of the views of the objects below is missing. Draw the missing views
| 030010145 |
| 030010162 |
| 030010164 |
| 030010701 |
One of the views of the objects below is missing. Draw the missing views
| 030010702 |
| 030010703 |
| 030010801 |
| 030980088 |
| 030990048 |
One of the views of the objects below is missing. Draw the missing views
| 030990050 |
| 030990092 |
| 030990097 |
| 030990212 |
