SEGMENTER : SOFTWARE FOR SEGMENTATION OF
LONG TIME SERIES
This
application segments time series applying least squares by constant or linear
regression.
AGREEMENT
-
Use this application
for only academic purposes.
-
Never distribute any
part of this software.
-
Refer the following
papers in your papers:
[1] Aksoy H, Unal NE, Gedikli A, Letter to the editor, Stochastic
Environmental Research and Risk Assessment, 21(4): 447-449, 2007.
[2] Gedikli A, Aksoy
H, Unal NE, Segmentation algorithm for long time
series analysis, Stochastic
Environmental Research and Risk Assessment, 22(3): 291-302, 2008.
[4] Gedikli A, Aksoy
H, Unal NE, Kehagias A,
Modified dynamic programming approach for offline segmentation of long hydrometeorological time series, [online], Stochastic
Environmental Research and Risk Assessment.
[5] Gedikli A, Aksoy
H, Unal NE, AUG-Segmenter: A user-friendly tool for segmentation of long
time series, Journal of Hydroinformatics,
12(3): 318-328, 2010.
Contact:
Assoc.Prof.Dr.
Abdullah Gedikli
Istanbul
Technical University
Civil
Engineering Faculty
34469
Maslak, Istanbul, TURKEY
VERSION 2.1
Requirements:
-
Windows 32/64 bytes operating system.
-
Microsoft .NET Framework 3.5. If not yet, install it.
Click on an image
to download application and extract it to an empty directory. No installation
required, just run Segmentation.exe.

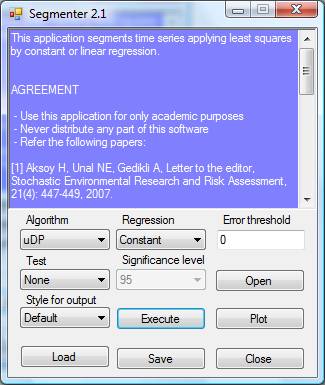

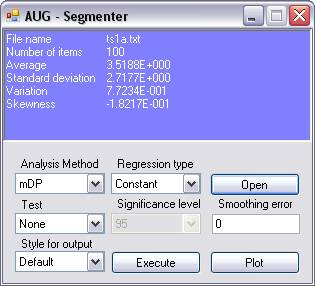

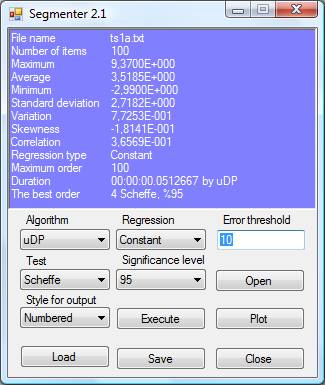

Main Window
32 bytes

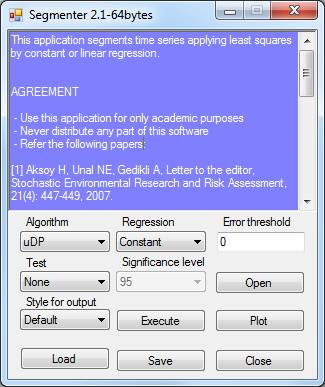

64 bytes

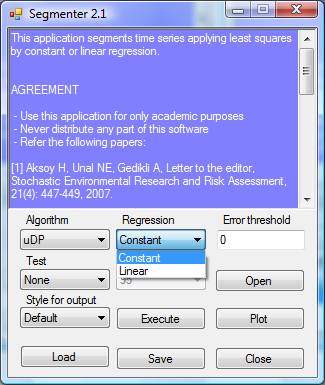

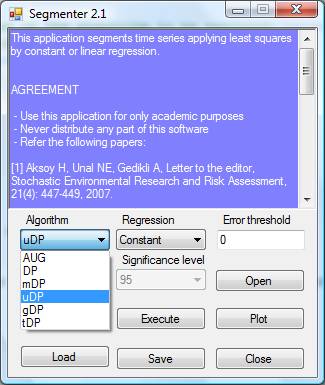

Options

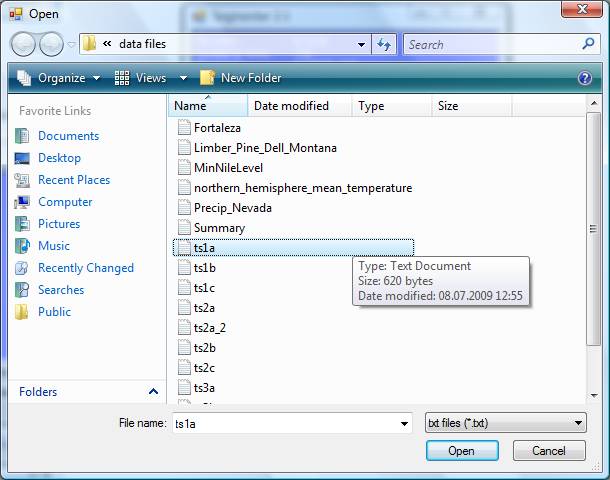

[Open] Single file
Open a single file,
Sample Data in
which decimal grouping symbol should be used for neither floating point nor
integer numbers.

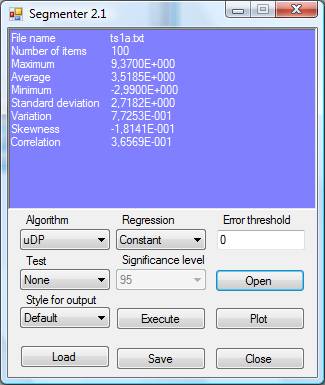

After pressing
[Open] in Open window,

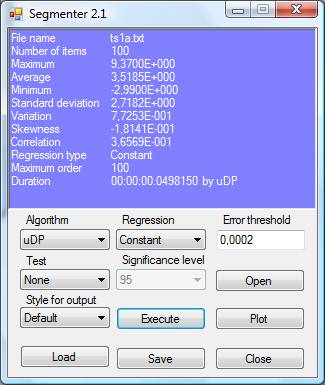

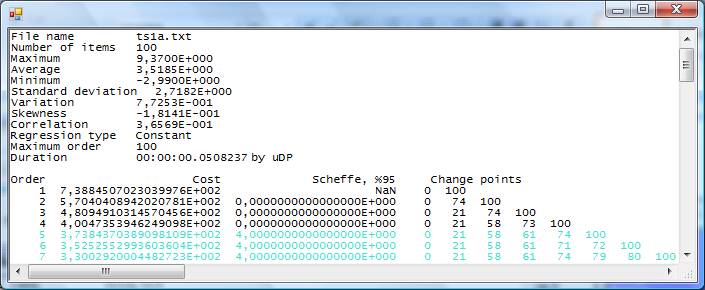

[Execute]
The smallest error,
which belongs to a segment, greater than zero is reported in error threshold box.

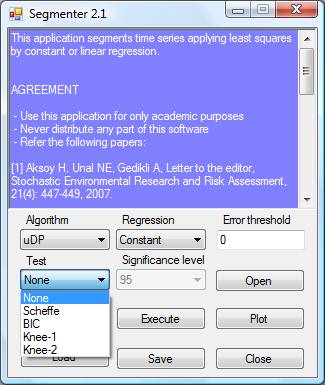

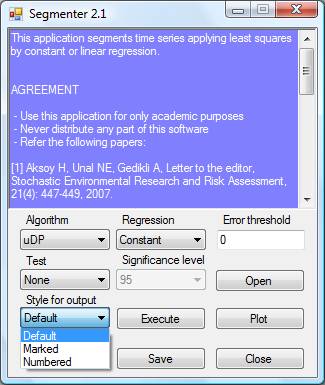

[Test] and [Style for output]
Selecting Scheffe test and Numbered style for output:
[Plot]
Time series and
Segments are plotted in
plot pane.

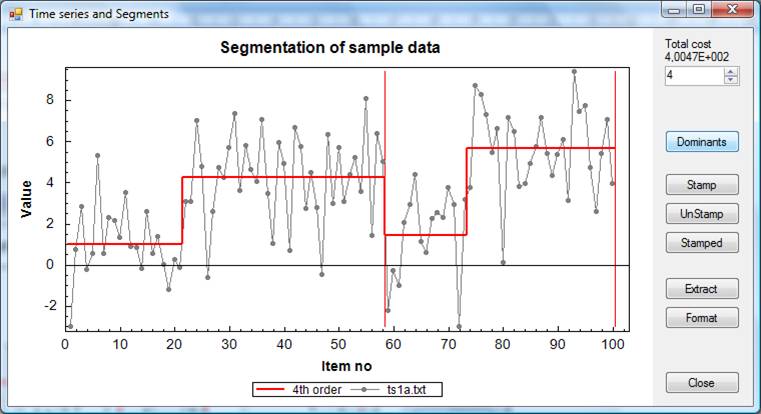

[Plot][Dominants]
Shows
dominant change points by vertical red lines.

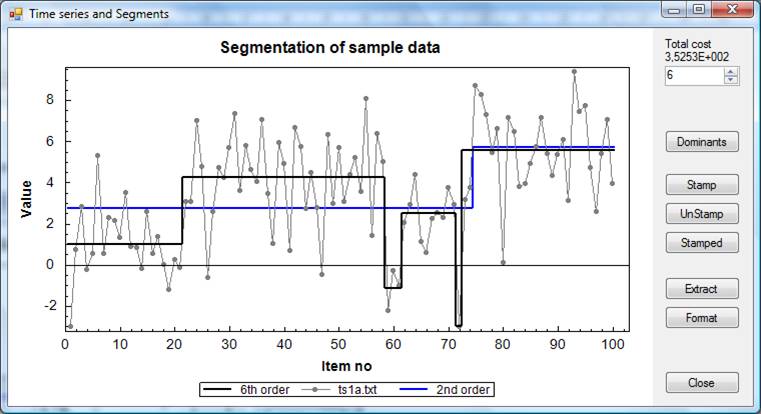

[Plot][Stamp]
Stamps
segments. Blue belongs
to Stamped segments (2nd order)
[Plot][UnStamp]
Removes “Stamp”
[Plot][Stamped]
Plots the “Stamped”
segments
[Plot][Extract]
Copies
the shown segmentation as a new Time Series into clipboard in ASCII text code.
[Plot][Format]
Title
: Title of figure as
centered at top.
X axis : X axis name
Y axis : Y axis name
Legend
: Legend for series
Symbols
: Marks data points
with circles
[Error threshold] box
Also, you can
neglect the segments with the error less than an error threshold,
say 10.
Here are the
results which are the same for error threshold =10 for this example!
[Load] and [Save]
You can save your
execution to investigate the segmentations later. Download the executed file ts1a.txt.seg
into a directory and press [Load] button then select it to see how it works.

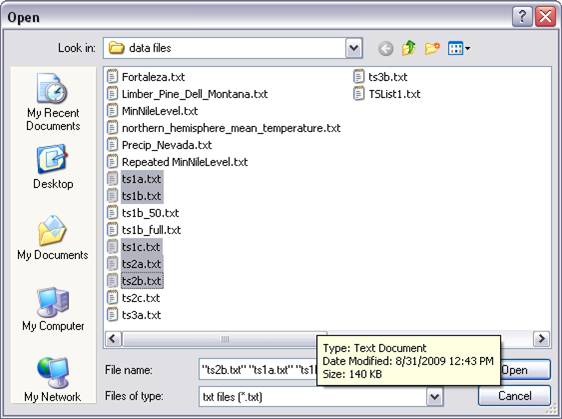

[Open] Multiple file
When opening files,
select multiple data files:
Then press [Open].

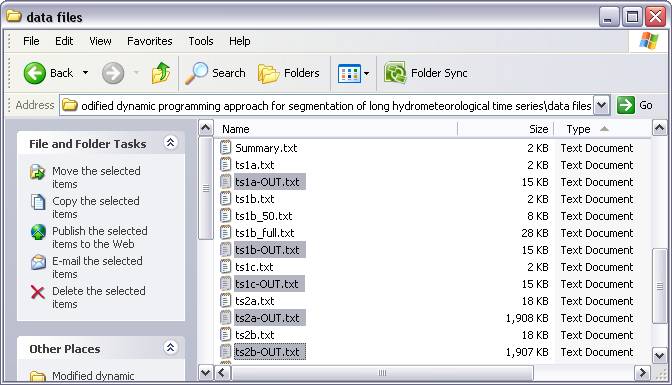

After execution is completed see the directory including selected files:
Change points of
segments are reported in the files, which their names includes “-OUT” . Statistical report is given in “Summary.txt”.
Matlab Interface
Will
be available soon.
PREVIOUS
VERSIONS

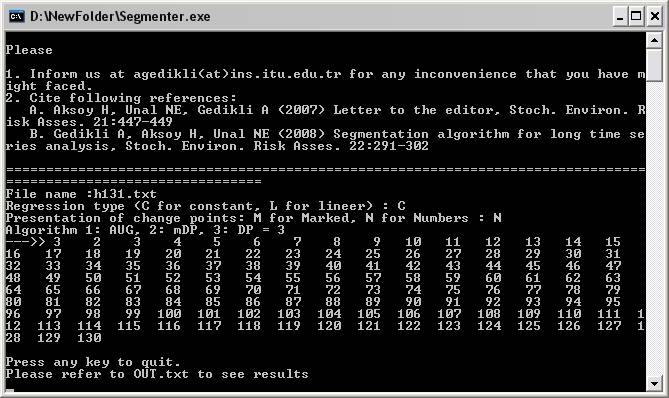

Version 1.1
Console
application (by c++)
